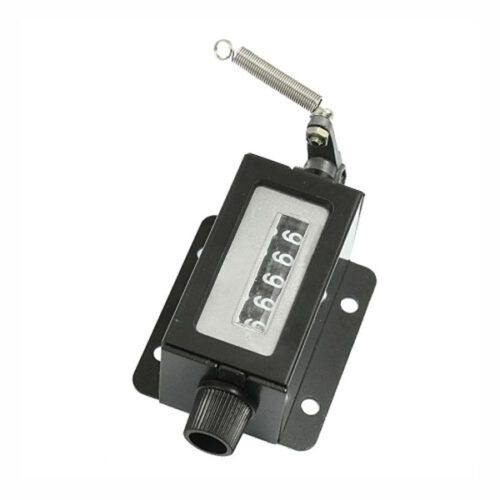

5 DIGIT STROKE COUNTER

Mechanical Industrial Counter, 5 Digit

The 5 digit mountable mechanical industrial counter may be used as a recording instrument for machinery.

It counts the number of times a part moves back and forth. It is commonly used with punch or press machines, printing machines, packaging machines and etc.

It counts a total of 100000, from 00000 up to 99999. It has a reset knob on the left and the counting arm on the right. It counts when the shaft moves clockwise. The angle of the counting arm is adjustable. The counting arm is attached to a spring for pulling the arm. The spring is used to reduce or absorb any mechanical shock that may reach to the counter.

This general-purpose machine stroke counter is ideal for use on most types of production counting equipment, counts one with each movement of the adjustable lever. Machine counters are also known as clicker, stroke counter and pull counter.

It has a metal framebase that can be mounted using four screws.
