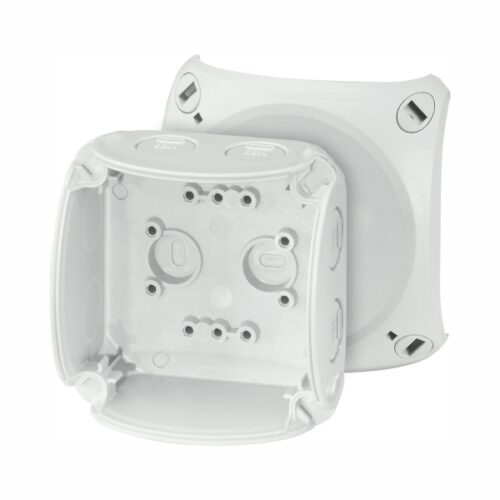

JUNCTION BOX M20/25/32

Junction Box M10 & M25 & M32

Without terminals

With one cable entry M 25 from the rear side

Cable entries via knockouts, order AKM separately (see cable entry systems LES)

“Weatherproof” resistant to weather influences (UV due to solar radiation, protected against rainwater, temperature resistant,

impact resistant, etc.) saltwater-proof “offshore applications”

Lid fasteners sealable without accessories

Retaining strap and external brackets for wall fixing included

Colour: grey, RAL 7035

Material PC-GFS (polycarbonate)

Degree of protection: IP 66 IP 67 IP 69

IP 67, temporary submersion up to 1 metre, max. 15 minutes

IP 69, water pressure max. 100 bar, water temperature max. 80

?C, distance ? 0.15 m

Mounting width 102 mm

Mounting height 102 mm

Max. installation depth 62 mm

Width 130 mm

Height: 130 mm

Depth 77 mm

Weight 0,215 kg

In accordance with IEC 60670-22

In accordance with DNV GL – Certificate No: TAE00000EE

KF0200G
