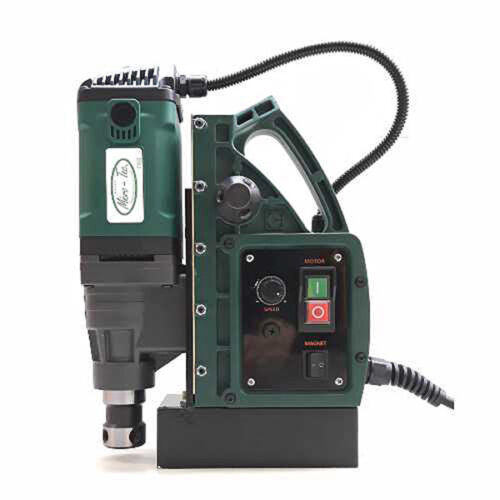

MAGBASE 1550W 35MM MICRO-TEC

Magnetic Base Drilling Machine

35mm

Micro-Tec

Specification :

Rated Voltage (V) 110220V

Rate Frequancy (Hz) 5060Hz

Rated Inputed Power (W) 1550W

Max Drilling: (mm) 35

Magnet Adhesion (N) 14800N

No-load Speed (rpm) 100-830

Stroke Length (mm) 120

Max Depth (mm) 30

G.W. (kg) 15.3

N.W. (kg) 10.5

Packing Dimension (mm) 580 x 180 x 380

Details:

Built-in cooling system

Strong adhesion

All die-cast magnesium alloy frame

Light weight

Plastic carry case + Carton

Extent of Supply

Chuck Capacity: 13mm

Chuck Mount: 12? UNF

Chuck Adaptor

Safety Strap

SKU: MB355
