MITRE SAW 216mm METABO

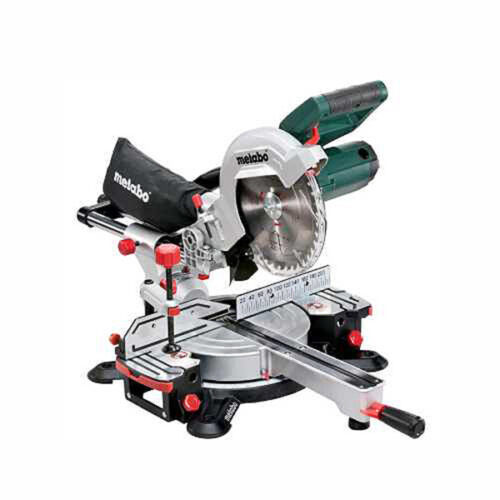

Metabo KGS 216 M Mitre Saw

619260000



220-240V 50 – 60 HZ



Sliding function for wide work pieces.

Compact light weight, suitable also for one-handed transport

Robust die-cast aluminium design for the highest demands

Easy transport thanks to ergonomically-designed handles and saw head lock

Effective dust extraction via integrated dust scoop

Fast and precise setting of common angles using stop points

Laser for exact display of the cutting line (mains powered, no batteries required)

Adjustable and extendable table width extensions, removable to put long panels, slabs etc. underneath

Bright LED work light for illumination of the cutting line (mains powered, no batteries required)

Sliding high rear fence profiles for safe sawing

Material clamp for secure fixing of the work piece from the top or front

Depth guide for easy creation of grooves

Saw head can be inclined to the left, with additional angle range for undercuts

All scales and operating elements are visible from the working position and can be operated intuitively

Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required



Characteristics:

Dimensions: 760 x 475 x 340 mm 2.5 x 1.6 x 1.1 ft

Support surface: 345 x 730 mm

Maximum cutting width 90?45?: 305 205 mm 12 8 116 ”

Maximum cutting depth at 90?45?: 65 36 mm 2 916 1 1332 ”

Cutting capacity 90?90?: 305 x 65 mm 12 x 2 12 ”

Cutting capacity 45?45?: 205 x 36 mm 8 116 x 1 1332 ”

Turntable setting leftright: 47 47 ?

Saw blade tilt leftright: 47 2 ?

Saw blade: 216 x 30 mm 8 12 x 1.181 ”

Rated input power S1 100%: 1200 W

Rated input power S6 20%: 1500 W

No-load speed: 5000 rpm

Revolutions at rated load: 3750 rpm

Cutting speed: 57 ms 187 fts

Weight :13.5 kg 29.8 lbs

Cable length: 2 m 7 ft
